BL-215G EPE foam Vented Groove surface Liner

Product introduction

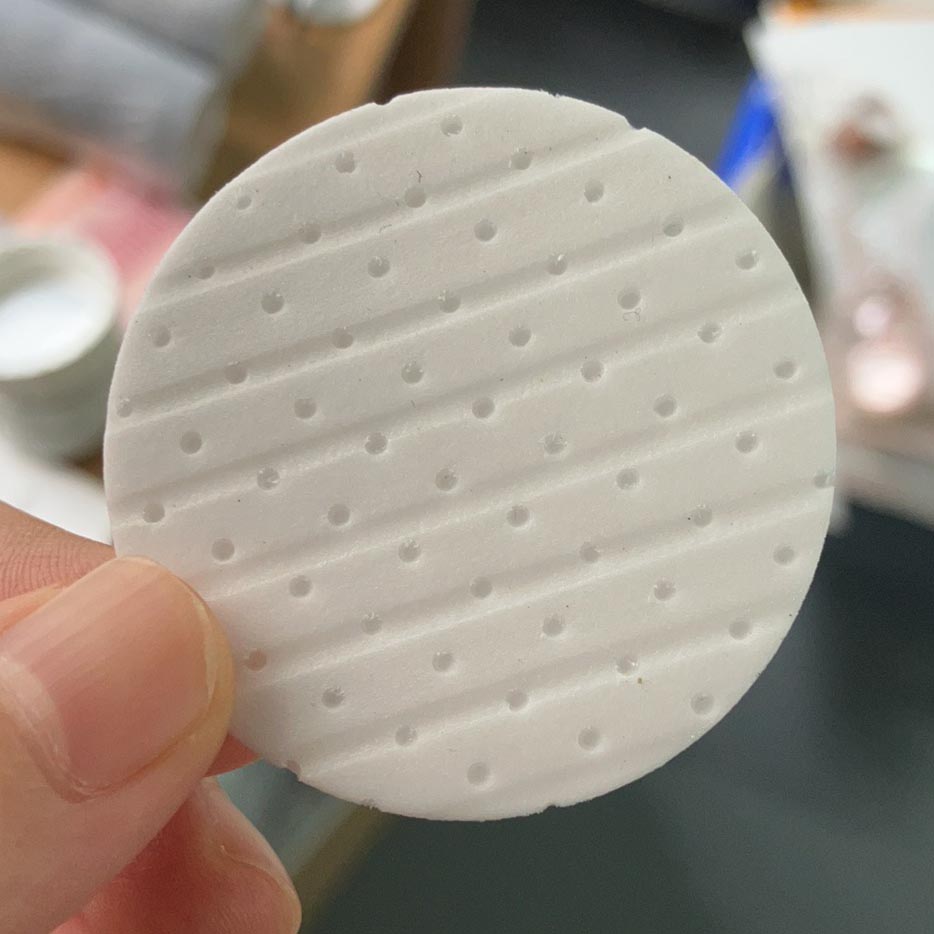

Vented EPE foam 1.5mm thick Liner (Groove type) | BL-215G
Total thick: 1.5mm
Made by High-density PE Foam Liner laminated ePTFE film.

REQUEST A QUOTE

Grooved Surface: Designed to increase airflow and breathability.
High-Density Polyethylene Foam: Provides excellent resilience (recovery) and a superior sealing performance.
High-Quality Breathable Membrane: Ensures both hydrophobicity (water repellency) and air permeability.
Corrosion & Leak Resistance: Delivers outstanding protection against corrosion and leakage.

Basic Parameters

Parameter	Specification	Notes
Model	BL-215G	–
Liner Type	Vented Foam Liner	multihole with groove surface
Structure Layers	EPE foam / ePTFE Layer (one-piece construction)	ePTFE layer toch bottle mouth
Total Thickness	1.5mm	Customizable based on application
Diameter Range	10mm – 180mm	Standard and custom sizes available
EPE foam density	600KG / M3	Provide security sealing performance
ePTFE film Thickness	12 – 30 microns (0.012 – 0.03mm)	Barrier performance and seal integrity
Color	white	–
Packaging	Cut pieces in plastic bags / Roll form (continuous on 76mm core)	1,000 – 5,000 pieces per bag (depending on diameter)
