No-wax EPE foam aluminum foil induction seal liner [GPE-1520B]

Product introduction

The no-wax EPE foam aluminum foil induction seal liner [GPE-1520B] is a packaging material used for the bottle caps inserts, providing sealing for the bottle neck. Its main function is to prevent water and oxygen for contents.
[GPE-1520B] is a two-in-one induction sealing liner. Consisting of a EPE foam liner and aluminum foil seals. Insert the product into the bottle cap, with the PE side facing the bottle cap and the aluminum foil side facing the bottle opening. After close the bottle cap on the bottle, perform a heat sealing using an induction sealing machine to complete the sealing process. When consumers open the bottle cap, the product will separate into two parts, the bottle opening will be sealed by the aluminum foil sealing film. The EPE foam will be keep inside the bottle cap. The aluminum foil can be easily peel off or puncture. The foam liner inside the bottle cap continues to provide a better sealing, helping consumers extend the usage period after opening.
The aluminum foil surface of the [GPE-1520B] can be custom-printed, so that consumers can see the brand logo pattern after opening the bottle cap.
If custom printing is not carried out, the aluminium foil of the [GPE-1520B] is golden aluminium foil.
The [GPE-1520B] uses new PE raw materials as the foaming liner. The aluminum foil part is coated with food-contact grade polymer material. This material is dry and non-adhesive at room temperature. After being sealed by the indcution sealer, the aluminum foil heats up and melts and firmly sealing the bottle mouth. This product is safe for food contact, suitable for all kinds of foods including oils, alcohols and acidic foods. For details, please refer to the test report issued by SGS testing company.
The [GPE-1520B] is suitable for packaging solid powder creams and other similar products, but is not suitable for contents that come into contact with liquids or have too strong fluidity and permeability.

Applications

  • Glass bottle, Instant coffee.
REQUEST A QUOTE

Features and characteristics

Key Features immediately:

·         Tamper-Evident – Clear visual indication if the seal has been broken

·         Two-Piece Design – Paperboard stays in cap for reseal after foil is removed

·         Hermetic Seal – Prevents leakage, moisture ingress, and oxygen transmission

·         Clean Peel Option – No residue left on container mouth

·         Custom Printable – Aluminum foil surface accepts logos and branding

·         Extended Shelf Life – Protects product freshness and integrity

Detailed introduction

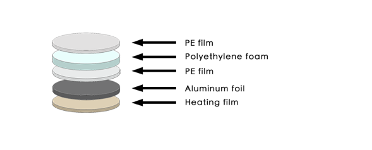

Structure

Basic Parameters

Parameter

Specification

Notes

Model

GPE-1520B

Type

Two-piece induction seal liner

EPE foam backing + foil seal for glass

Total Thickness

1.6mm (standard)

Customizable upon request

Diameter Range

10mm – 150mm

Custom sizes available

Structure Layers

PE film / EPE foam core / PE film / Aluminum Foil / Heat Seal Adhesive

2-in-1 construction

Aluminum foil Color

Silver / Gold / Custom printed

Shape

Round disc (die-cut)

Custom shapes available for non-round caps

Quality Certifications



Certification

Status

Applicability

ISO 9001:2008

Certified

Quality management systems

FDA Compliant

Yes

Food and pharmaceutical contact

SGS Verified

Available

Third-party testing available

RoHS Compliant

Yes

Restricted substances compliance

REACH Compliant

Yes

EU chemical regulations





Packaging & Storage



Item

Specification

Packaging Form

Cut pieces in plastic bags / Roll form (continuous on 152mm core)

Standard Pack Quantity

200 – 350 pieces per tube (depending on diameter)

Carton Packaging

Corrugated cartons with inner liner

Storage Conditions

Cool, dry place; avoid direct sunlight and extreme heat

Shelf Life

3 years under proper storage conditions



Why Choose Our BP-320?



Advantage

Benefit

Factory Direct Pricing

No middlemen; competitive pricing

11+ Years Export Experience

Proven quality and reliability

Full Quality Control

IQC/QC/OQC processes for every batch

Sample Testing Available

Test before mass production commitment

Custom Orders Welcome

Low MOQ for new customers

Fast Lead Times

Sample: 3-5 days; Bulk: 15-20 days

Free Technical Support

Guidance on seal selection and induction parameters
